Interactive Web Data Visualization

A data visualization that explores the microbes that colonize human navels.
In other words, your belly button.

an image

Set up

In this project, I built an interactive dashboard to explore the Belly Button Biodiversity dataset, which catalogs the microbes that colonize human navels.

The dataset reveals that only a small handful of microbial species (also called operational taxonomic units, or OTUs, in the study) were present in more than 70% of people, while the rest were relatively rare.

1) Plot.ly

  1. Use the D3 library to read in samples.json.

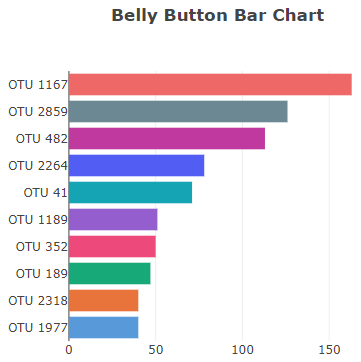

  2. Create a horizontal bar chart with a dropdown menu to display the top 10 OTUs found in that individual.
    • Use sample_values as the values for the bar chart.
    • Use otu_ids as the labels for the bar chart.
    • Use otu_labels as the hovertext for the chart.
    centered image

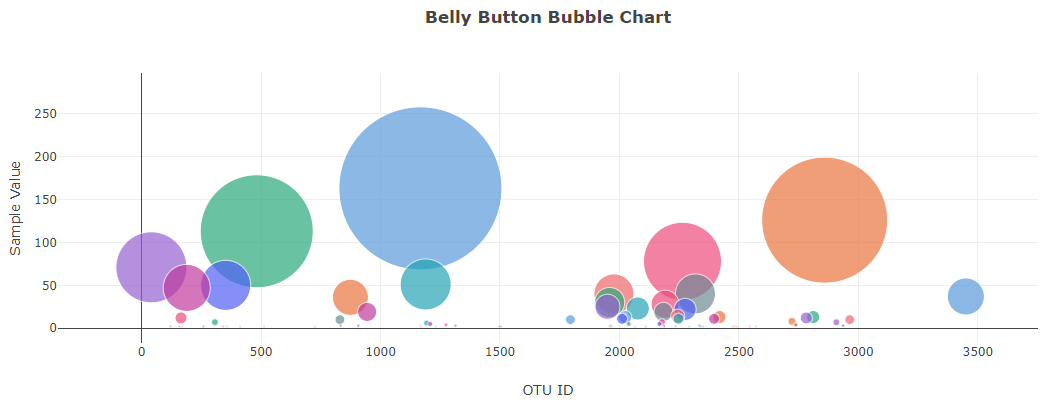

  3. Create a bubble chart that displays each sample.
    • Use otu_ids for the x values.
    • Use sample_values for the y values.
    • Use sample_values for the marker size.
    • Use otu_ids for the marker colors.
    • Use otu_labels for the text values.
    centered image
  4. Display the sample metadata, i.e. an individual's demographic information.
  5. Display each key-value pair from the metadata JSON object somewhere on the page.
  6. Update all of the plots any time that a new sample is selected.

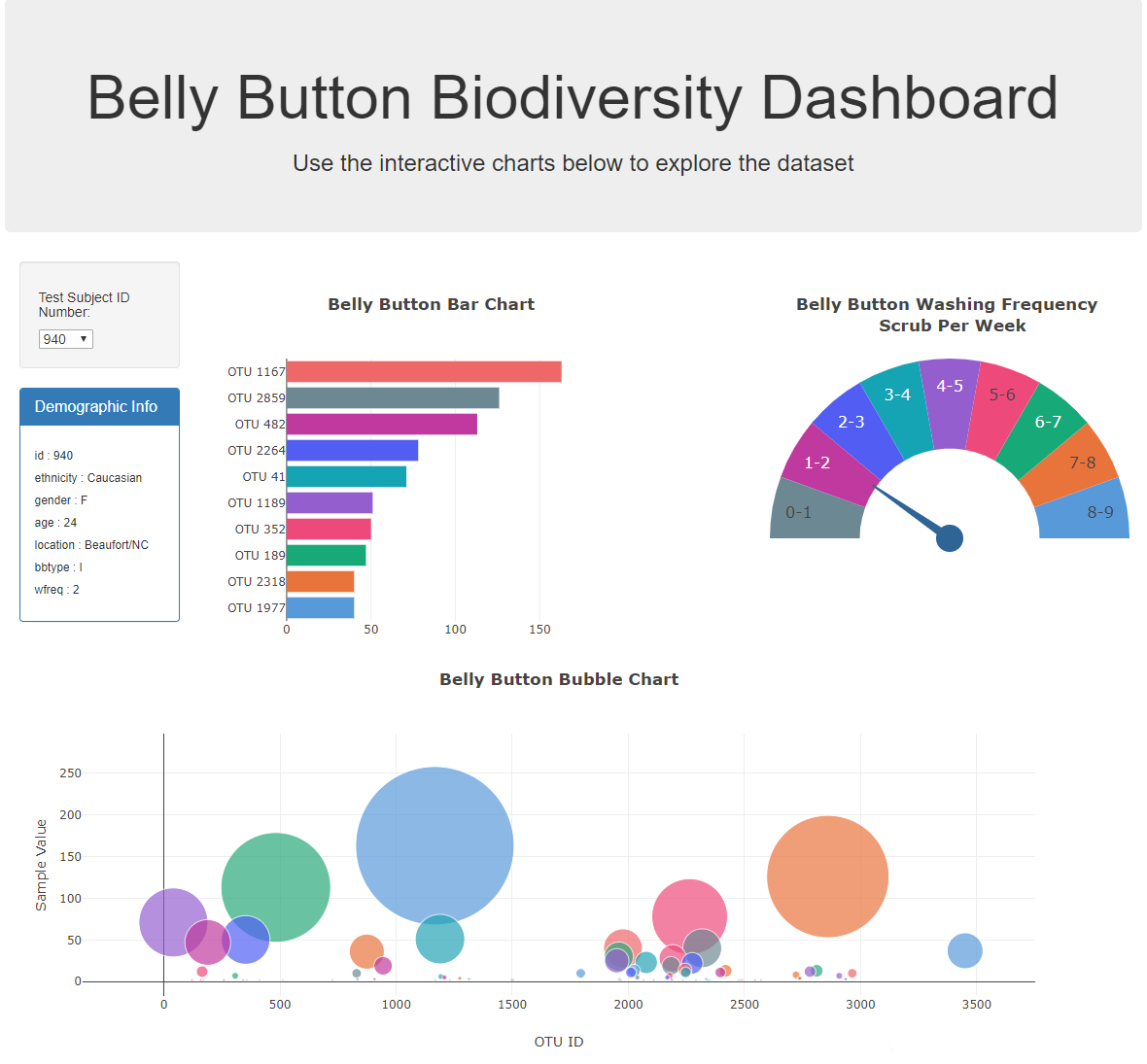

    7. Additionally, I created a layout for my dashboard: centered image

2) Additional Plot

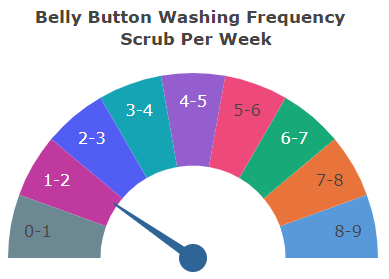

  • I adapted the Gauge Chart from Plot.ly to plot the weekly washing frequency of the individual.
  • Next, I modifed the example gauge code to account for values ranging from 0 through 9.
  • the chart updates whenever a new sample is selected.
centered image

3) Deployment

I deployed my app to a free static page hosting service, GitHub Pages.
